How To Assemble Ringlock Scaffolding-Bottom Assembly

In commercial and industrial construction projects, establishing a stable foundation is essential for overall site safety. Modern construction relies heavily on modular temporary structures to provide reliable elevated access for workers. Among these modular solutions, Ringlock Scaffolding stands out as a highly versatile and structurally sound option used across major jobsites worldwide.

Understanding how to construct the bottom assembly correctly prevents common installation errors that lead to structural instability. This comprehensive guide details the step-by-step process of installing base jacks, base collars, ledgers, and diagonal braces for maximum safety and structural performance.

When setting up modular systems, exploring professional supply solutions such as EASY equipment options ensures high standards for project execution. Premium components engineered with precise tolerances help maintain exact geometry throughout every phase of assembly.

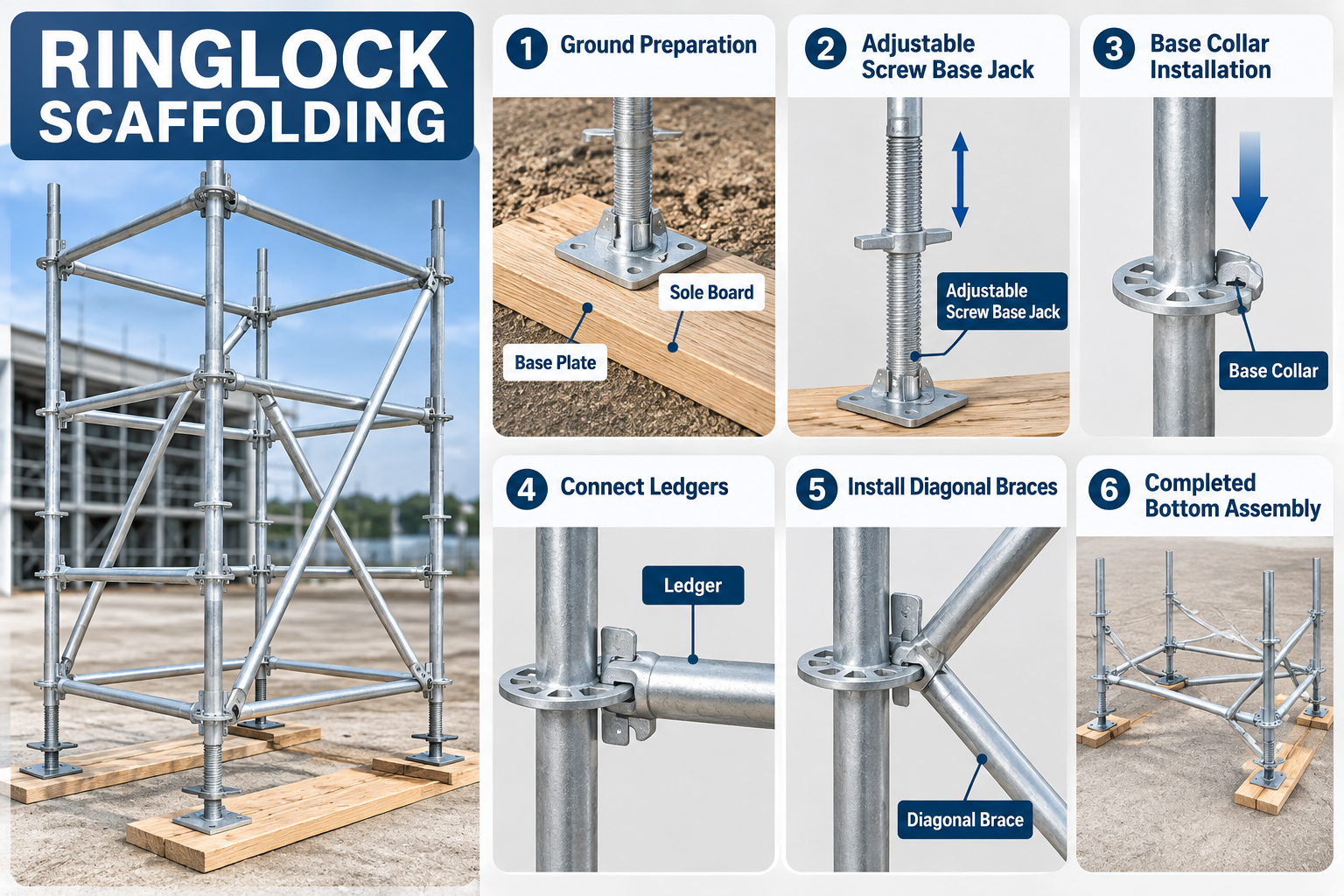

Below is an overview of the core sections covered in this guide, summarizing the key procedures for proper bottom assembly installation:

Pre-Assembly Ground Preparation

Proper ground preparation requires evaluating soil load capacity, clearing surface debris, and laying heavy duty sole boards to distribute structural loads evenly across the ground.

Before setting up any Ringlock Scaffolding, field engineers and safety supervisors must perform a thorough ground inspection. The ground surface must be compacted, level, and free of soft mud, standing water, or uncompacted fill. If the foundation is inadequate, live and dead loads will cause uneven settling, leading to structural tilt and potential collapse.

When working on unpaved ground, workers must lay continuous timber sills or concrete mudsills beneath every base plate. These sole boards distribute concentrated vertical forces over a wider surface area. Using certified, high-density materials like Heavy-Duty Ringlock Scaffolding For Construction ensures the base supports heavy industrial loading conditions without sinking.

Always verify that sole boards extend at least two inches past each side of the steel base plate. Ensure full surface contact between the board and the ground to prevent rocking or tilting during installation.

1. Inspect site soil conditions and compact loose earth or gravel before placement.

2. Clear away trash, loose rocks, and standing water from the setup zone.

3. Lay down dense timber sole boards perpendicular to the scaffold structure line.

4. Position base locations accurately according to structural engineering drawings.

Setting Up Adjustable Screw Base Jacks

Adjustable screw base jacks are positioned directly on sole boards to provide height adjustments that accommodate uneven ground surfaces.

Screw base jacks serve as the primary vertical support and leveling mechanism for the entire structure. Place each base jack centered on its dedicated sole board to maximize load distribution. The base jack consists of a heavy steel plate welded to a threaded steel stem with an adjusting collar nut.

Adjust all collar nuts to a uniform height before inserting further structural components. Never over-extend base jacks past the manufacturer's maximum allowable thread height. Exceeding recommended extensions reduces structural load capacity and increases the risk of bending under heavy loads.

Inspect every jack screw for thread damage, concrete buildup, or rust before placing it into service. Smoothly operating adjustment nuts are necessary for precise micro-leveling across the entire base grid.

Installing Base Collars Correctly

Base collars slide over the adjustable base jack stems to provide the lowest rosette connection ring for horizontal ledgers.

A base collar features a short tube section welded to a standard eight-hole rosette disk. The collar rests directly on top of the base jack adjusting nut. This component establishes the bottom connection point for Ringlock Scaffolding, allowing initial ledgers to link base jacks together before full-height vertical standards are installed.

Slide the base collar over the threaded shaft of the base jack until it sits flush against the collar nut. Ensure the rosette ring is oriented correctly with four small openings for right-angle ledgers and four large openings for diagonal braces.

Using genuine modular components, such as a complete ringlock scaffolding system, ensures seamless compatibility between base collar sockets and horizontal ledger heads. Loose or mismatched tolerances at this low node point can create structural instability across upper levels.

1. Verify that the base jack adjusting nut is set at the desired height.

2. Lower the base collar over the jack stem until it rests firmly on the adjusting nut.

3. Align rosette rings across adjacent jacks to simplify initial ledger connections.

Connecting Base Ledgers and Squaring the Grid

Base ledgers attach horizontally to base collar rosettes using wedge heads locked with a hammer to establish a square, rigid base grid.

With base jacks and base collars in position, install horizontal ledgers between adjacent jacks. Insert the wedge head of the ledger into one of the small slots on the base collar rosette. Insert the captive wedge pin into the rosette slot and tap it securely with a hammer.

Construct a complete rectangular or square bay by connecting four base jacks with four horizontal ledgers. To ensure the frame is perfectly square, measure diagonally between opposing corners of the bay. Equal diagonal measurements confirm a square 90-degree frame, preventing structural distortion as erection proceeds upward.

Never fully drive home wedge pins until all four side ledgers are installed and diagonal measurements are verified. Once the bay geometry is square, drive each wedge securely using a two-pound hammer until the connection rings tightly.

Installing Diagonal Braces for Structural Stability

Vertical diagonal braces connect across base bays to lock in right angles and prevent lateral swaying.

While horizontal ledgers establish grid dimensions, diagonal braces provide essential lateral stability. Ringlock Scaffolding uses diagonal braces equipped with rotating wedge heads that lock into the larger slots of the rosette disks.

Fit the diagonal brace wedge heads into the wide rosette slots of opposite base collars or vertical nodes. The combination of horizontal ledgers and diagonal braces creates rigid triangular shapes that resist sway, wind loads, and seismic forces.

Install diagonal braces in both longitudinal and transverse directions according to engineering plans. Ensure the wedge pins are fully seated in the wide rosette slots and driven tight with a steel hammer to lock the structure's base geometry.

1. Select the correct length diagonal brace matching your bay dimensions.

2. Insert the lower brace wedge head into a large slot on the base collar rosette.

3. Connect the upper brace wedge head to the adjacent standard rosette.

4. Secure both wedge pins using a hammer to complete the brace installation.

Leveling and Aligning the Base Structure

Final base alignment requires checking horizontal ledgers and vertical standards with a spirit level while turning base jack nuts to achieve absolute precision.

Before adding upper vertical standards, perform a comprehensive level check across the entire base grid. Place a long spirit level across adjacent horizontal ledgers to check for horizontal alignment. Place the level vertically on base collars and initial standards to confirm plumb alignment.

Adjust the screw jack nuts individually to raise or lower specific corners until all ledgers read completely level. Take time to complete this step accurately; small leveling errors at the base compound quickly as additional tiers are added, leading to dangerous structural misalignments at height.

Once the entire base grid is level, plumb, and square, re-check all wedge connections and verify that every sole board remains in firm contact with the ground. A properly installed base provides a safe foundation for building higher tiers.
