How to Erecting Ringlock Scaffolding Safely & Efficiently

Table of Contents

• What Is Ringlock Scaffolding?

• How to Erect Ringlock Scaffolding

• Erection Procedure (Step-by-Step)

• Safety Checks Before Use

• Efficiency Tips

• Quick Checklist Before You Start

What Is Ringlock Scaffolding?

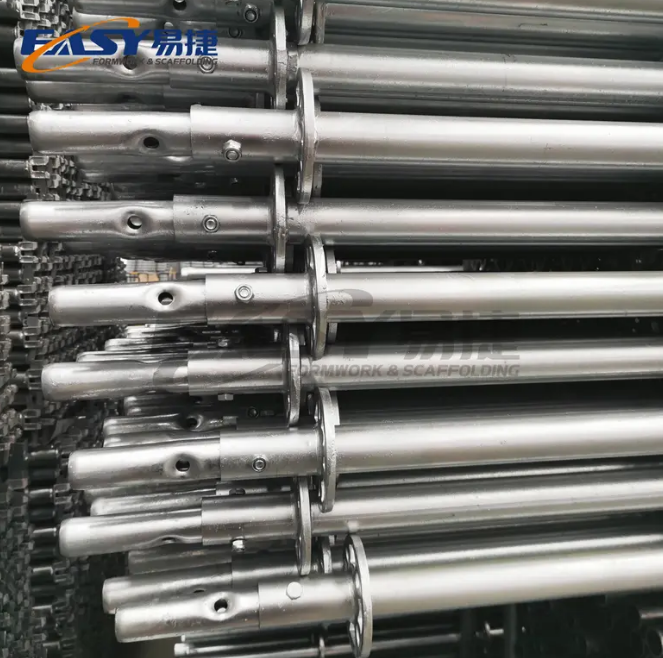

Ringlock Scaffolding is a modular, high-strength system scaffolding built around a central rosette connector that allows up to eight independent structural members to join at a single node with simple hammer-driven wedge locks. Manufactured predominantly from high-tensile structural steel and treated with hot-dip galvanization, heavy-duty Ringlock Scaffolding systems offer exceptional durability and superior corrosion resistance across industrial boilers, offshore platforms, bridges, and commercial construction projects. Its rosette design features four small right-angle slots for horizontal ledgers and four large variable slots for diagonal braces, eliminating loose bolts, nuts, or traditional coupler clamps while guaranteeing complete component interchangeability and high load-bearing performance. To maximize jobsite safety and productivity, contractors frequently rely on premium engineering solutions like those from EASY, a leader dedicated to high-performance modular system manufacturing.

How to Erect Ringlock Scaffolding

Erecting Ringlock Scaffolding requires a methodical combination of comprehensive pre-erection engineering planning, strict site preparation, and systematic component verification to ensure structural stability and workforce safety.

Pre-Erection Planning

Pre-erection planning involves reviewing engineering drawings, analyzing soil bearing capacities, verifying environmental conditions, and calculating maximum working loads prior to scaffolding delivery.

Before unloading any steel components, a thorough site survey must be conducted by a competent person. The ground or supporting structure must be evaluated to ensure it can support the combined weight of the Ringlock Scaffolding system, environmental loads such as wind or ice, and maximum intended live working loads. Soil stability tests or structural slab ratings dictate whether base sills, wooden mudsills, or heavy-duty steel spreader plates are required to distribute vertical point loads safely.

Comprehensive engineering planning also involves reviewing overhead hazards, high-voltage power lines, underground utility vaults, and nearby traffic routes. Working drawings must clearly define the layout grid, bay lengths, lift heights, tie-in locations to the anchor structure, and cantilevered sections. Planning safety protocols, such as establishing exclusion zones and coordinating fall protection equipment, ensures that the assembly team works inside a controlled, hazard-free environment.

Logistic considerations are equally important during the planning stage. Material delivery schedules must align with the erection sequence so that base components, standards, ledgers, and braces arrive in order. Establishing dedicated material staging areas near the footprint reduces unnecessary manual handling, preserves worker energy, and eliminates site clutter that could cause trip hazards or component damage.

Component Inspection

Component inspection requires a meticulous physical check of all vertical standards, ledgers, braces, base jacks, and rosettes to identify and eliminate damaged or deformed equipment.

1. Inspection of Vertical Standards and Rosettes

   Inspect all vertical standards for straightness, bent tubing, or compromised weld joints around the rosette rings. Examine each rosette ring carefully to ensure that connection slots are free of concrete buildup, rust scales, or physical deformities that could prevent the ledger wedge head from fully seating.

2. Inspection of Horizontal Ledgers and Wedge Heads

   Verify that horizontal ledgers are true and unbowed along their entire length. Check the cast-steel wedge heads on both ends, confirming that the captive wedge pins move freely, show no sign of cracks or elongation, and are securely retained within their head housings.

3. Inspection of Base Jacks and Accessories

   Examine base plate welds, threaded jack shafts, and adjustment nuts for thread damage, excessive corrosion, or bending. Ensure that planking, aluminum decks, hatch ladders, toe boards, and diagonal brace heads are free of structural defects before transporting them to the erection area.

Erection Procedure (Step-by-Step)

Step 1: Lay Out the Grid

Begin by establishing precise grid lines using tape measures and chalk in accordance with your engineering drawings, then position continuous wooden mudsills beneath every vertical support to evenly distribute loads. Place heavy-duty adjustable base jacks centrally onto the mudsills, keeping their extension length well within safety limits, and slide a base collar over each jack stem so the rosette node sits directly on the adjustment nut. Finally, use a spirit level and laser tool across all adjacent collars, adjusting screw nuts individually to guarantee a perfectly square and horizontally level foundation before building upward.

Step 2: Assemble the First Bay

Insert the cast wedge heads of four horizontal ledgers into the small right-angle slots of the base collar rosettes to automatically square the perimeter frame at precise 90-degree angles. Lightly tap the captive wedge pins downward with a scaffold hammer to connect the base collars together into a unified rectangular module without locking them permanently, allowing minor adjustments while aligning the rest of the ground grid. Once you verify that opposing diagonal measurements match precisely using a tape measure, drive all wedge pins down firmly until they ring with a solid metallic tone, completing a square and fully locked starter bay.

Step 3: Add Diagonal Braces

Insert the swivel wedge heads of vertical diagonal braces into the larger, wide slots of the rosettes on adjacent base collars and upper standards, allowing the braces to align naturally along the hypotenuse of the bay. Secure both ends of the diagonal braces by driving their captive wedge pins firmly into the rosette nodes, which locks the frame geometry into rigid triangles capable of resisting wind shear and lateral movement. Follow the engineering plan to repeat this bracing pattern across outer bay faces, constantly double-checking that all vertical standards remain plumb with a spirit level after tightening the wedges.

Step 4: Build Upwards

Stack upper vertical standards directly over the spigots or joiner pins of the lower posts, ensuring full contact between the tube ends, and secure the joint using safety locking pins to prevent accidental uplift. Install the next level of horizontal ledgers at designated lift heights—typically 2.0 meters apart—and drive the wedge locks home to establish the upper structural box while working from secured temporary decking with full fall protection. Immediately lay steel scaffolding decks or aluminum platforms across the upper ledgers, engaging their integrated anti-lift locks to create a continuous, safe working platform before advancing to the next vertical lift.

Step 5: Edge Protection & Access

Install horizontal ledgers into the rosette nodes at heights of 1.0 meter and 0.5 meters above the working deck to serve as top guardrails and mid-rails along all exposed edges. Secure protective steel or timber toeboards flush along the platform boundaries to prevent tools, construction materials, and loose debris from falling off the working deck onto workers below. Integrate internal stair towers or access hatch decks with caged ladders directly into the scaffold layout, ensuring workers can navigate between different vertical levels safely within fully protected zones.

Step 6: Final Inspection

Conduct a complete structural walkthrough of the newly assembled scaffold, using a hammer to verify that every wedge pin across all rosette connections is fully seated and locked. Inspect every mechanical anchor and wall tie against the engineering schedule to ensure the tower is rigidly tied into the main building structure, then use a plumb bob or optical level to confirm that vertical standard alignment falls within strict building tolerances. Once you confirm that all working decks are fully planked, edge protection is complete, and access ways are clear, complete and sign a green scaffold inspection tag (Scafftag) at every designated access point before opening the structure for trade use.

Safety Checks Before Use

Safety checks before use involve verifying load capacities, inspecting fall protection systems, confirming tie-in anchor security, and validating official inspection tags.

Prior to permitting workers onto a newly erected scaffold, safety supervisors must verify that the structure complies fully with local safety codes and occupational health standards. Scaffolding structures are designed for specific load classes, ranging from light duty for inspection work to heavy duty for masonry and material storage. Exceeding these designated load limits compromises structural safety and risks structural failure.

Continuous monitoring and daily pre-shift inspections are mandatory throughout the lifetime of the scaffolding project. Severe weather events, such as high winds, heavy rain, or freezing conditions, can alter ground stability or loosen structural ties. Regular daily checks ensure that minor defects are identified and remedied instantly before they evolve into major hazard risks.

Efficiency Tips

Boost erection efficiency by optimizing material staging, deploying trained specialized crews, utilizing efficient hammer techniques, and organizing modular workflows.

1. Strategic Material Staging

   Organize components at the jobsite according to the erection sequence. Grouping standards, ledgers, and decks systematically near crane pick points reduces manual handling distances and eliminates downtime spent searching for specific part lengths.

2. Specialized Crew Roles

   Assign distinct, specialized tasks to crew members, such as base layout specialists, material passers, wedge lockers, and deck installers. Streamlined division of labor builds rhythm and increases assembly speed significantly.

3. Proper Wedge Hammering Technique

   Use dedicated 500g scaffold hammers and strike wedge pins cleanly on top. Avoid over-striking or using excessively heavy sledgehammers, which can deform cast wedge heads and make future dismantling difficult.

4. Integrated Modular Ringlock Scaffolding Assemblies

   Utilize standardized component lengths across the entire site footprint. Uniform bay dimensions streamline ledger selection, simplify decking layouts, and allow riggers to build repeating modular sections rapidly.

5. Ergonomic Work Practices

   Employ mechanical hoists, gin wheels, or crane lifts to transport heavy steel standards and decks to upper levels. Reducing manual overhead lifting minimizes worker fatigue, prevents muscular strain injuries, and keeps productivity rates consistent throughout the day.

Quick Checklist Before You Start

The quick checklist provides a mandatory verification protocol covering ground stability, component condition, safety gear, layout accuracy, and weather conditions.

• Ground foundation compacted, level, and fitted with continuous mudsills

• All base jacks, standards, ledgers, and braces inspected for defects

• Approved structural engineering drawings and load calculations available on site

• Personal protective equipment including hard hats, boots, and fall arrest harnesses ready

• Exclusion zones marked off with safety barrier tape to protect ground personnel

• High-voltage power lines and overhead hazards identified with safe clearances established

• Base collars, jacks, and starter ledgers verified square and level with precision tools

• Weather forecasts checked to ensure wind speeds and visibility are safe for working at heights

• High-quality Ringlock Scaffolding materials staged systematically for seamless assembly
