Ringlock Scaffolding: 7 Big Advantages

Outstanding Versatility and Design Flexibility

Ringlock Scaffolding offers unmatched design flexibility through its unique rosette system, allowing up to eight connections at a single junction point across various horizontal, vertical, and diagonal angles to accommodate complex architectural shapes.

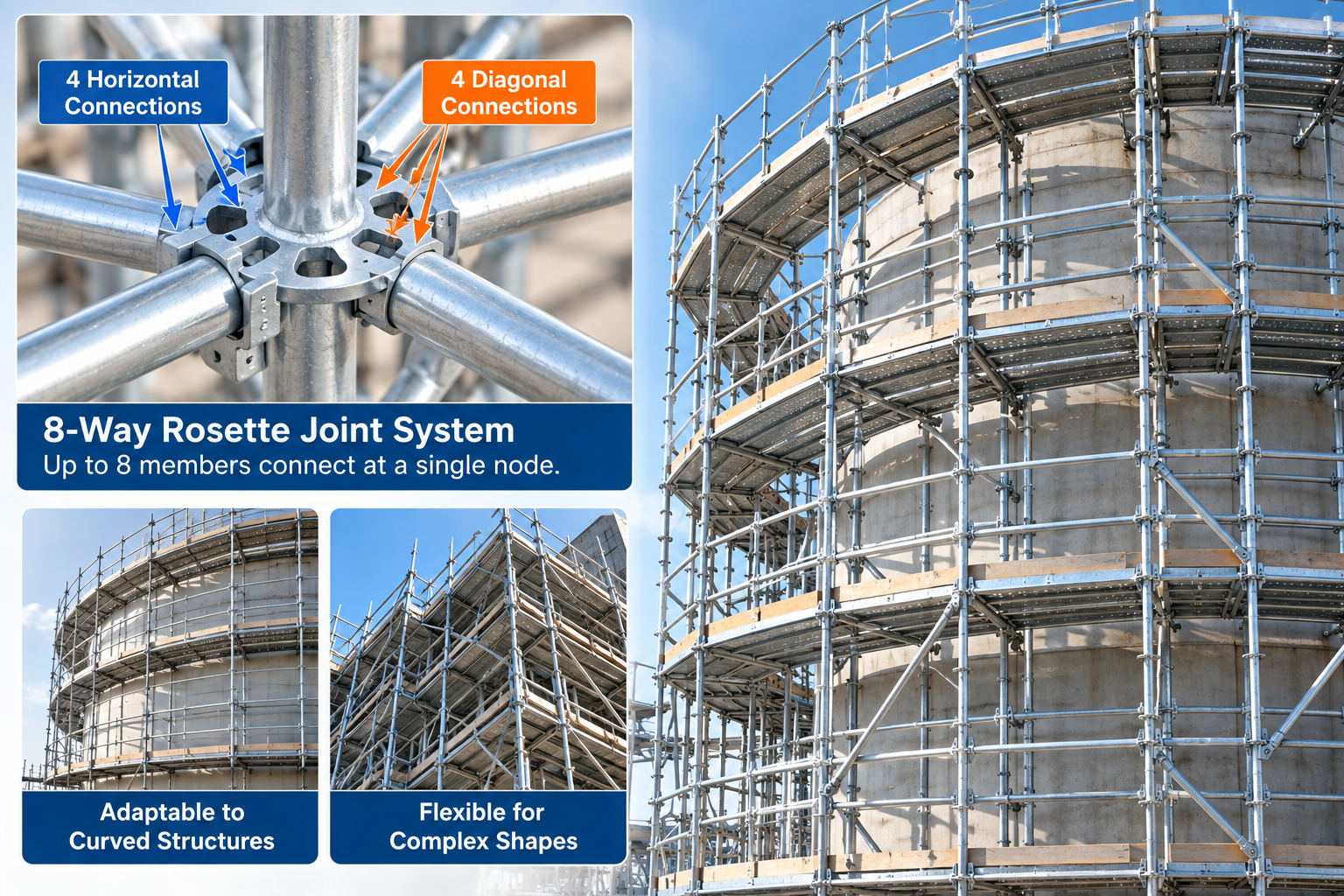

1. Multi-Directional Rosette Joint System The central rosette connector features eight pre-punched connection holes, enabling up to eight distinct members to lock together at a single node point. Four small slots fix horizontal ledgers at exact ninety degree angles, while four larger trapezoidal slots allow diagonal braces to connect at variable angles. This flexible geometry allows scaffolding structures to smoothly wrap around circular storage tanks, angled facades, and intricate industrial piping.

2. Broad Application Across Diverse Industries This multi-directional system seamlessly conforms to complex structural environments across shipbuilding, industrial maintenance, civil engineering, and offshore platform projects. Contractors seeking reliable modular hardware for varied application environments frequently rely on heavy-duty modular ringlock scaffolding components to erect cantilevered decks, mobile access towers, and suspended work zones without specialized adapters.

3. Adaptable Work Platform Spacing Standardized ring spacing along vertical posts provides flexible, precise deck elevation adjustments to meet ergonomic requirements on site. Workers can quickly establish safe work decks at exact heights needed for masonry, painting, pipefitting, or welding tasks. The modular system also integrates directly with stair towers, public pedestrian bridges, and heavy shoring systems.

Speedy Assembly and Disassembly

Ringlock Scaffolding accelerates project timelines dramatically by utilizing a simple hammer-lock wedge mechanism that eliminates the need for loose nuts, bolts, and threaded couplers.

1. Intuitive Hammer Lock Action Assembly requires inserting the ledger or diagonal brace end over the rosette plate and locking it securely by striking a wedge pin with a standard hammer. A few firm hammer strikes instantly form a rigid structural joint without requiring electric power tools or manual thread tightening.

2. Drastic Reduction in On-Site Labor Costs Simple hammer connections reduce erection time by up to sixty percent compared to traditional tube and coupler systems. Erection crews build complex scaffolding platforms rapidly, lowering direct labor costs, shortening equipment rental periods, and accelerating overall project schedules.

3. Fast and Safe Teardown Operations Dismantling is completed quickly by tapping the wedge pins upward from below to release the locked joint immediately. Standardized light components allow workers to stack, pass down, and organize materials efficiently, minimizing downtime between work cycles.

Superior Load-Bearing Performance

Ringlock Scaffolding provides exceptional structural load capacity by transferring heavy weight directly through high strength vertical steel standards and rigid rosette node joints.

1. High Tensile Material Composition Manufactured from high strength steel grades such as Q355 or S355, Ringlock Scaffolding supports substantial dead and live loads safely. The vertical posts withstand extreme vertical axial compression while the node connections distribute horizontal wind and impact forces evenly across the entire structure.

2. Rigid Node Joint Dynamics Unlike traditional tube clamps that depend strictly on friction, the ringlock rosette and wedge pin mechanism forms a positive mechanical lock. Driving the wedge key creates a tight connection that resists joint rotation and structural sway, maintaining stability under heavy equipment loads.

3. Heavy Infrastructure and Industrial Utility For heavy civil engineering projects, bridge repair, and power plant builds, high weight capacity is essential. Engineers specify heavy-duty aluminum ringlock scaffolding systems for high-load construction when superior strength combined with reduced self-weight is needed for sensitive working surfaces.

Easy to Store and Transport

Ringlock Scaffolding optimizes logistics and storage efficiency through its modular, drop-in design that stacks neatly and minimizes wasted shipping volume.

1. Compact and Modular Component Stacking Components feature straight profiles without bulky fixed arms or odd geometric projections. Vertical standards, horizontal ledgers, and diagonal braces stack flat into neat storage bundles, maximizing warehouse rack space and site storage yards.

2. Maximized Shipping and Freight Efficiency Flat stacking allows logistics teams to maximize truck bed and shipping container weight and volume capacities. Transporting more structural square footage per truck load lowers freight overhead and reduces carbon emissions across project logistics.

3. Integrated Small Hardware Design Wedge keys are permanently captured within ledger end castings, preventing loose hardware from falling off during transport. This captive design eliminates lost hardware expenses and simplifies inventory counts between projects.

Long-Term Durability

Ringlock Scaffolding offers extended operational lifespans because hot-dip galvanization protects all structural components against severe weather, corrosion, and physical site wear.

1. Complete Hot-Dip Galvanization Protection All steel structural elements are submerged in molten zinc, forming an alloyed protective coating inside and outside every tube. This zinc layer shields against rain, humidity, mechanical impact, and chemical exposure.

2. Resilience in Harsh Operating Environments Hot-dip galvanized surfaces prevent rust formation, making ringlock hardware suitable for coastal builds, offshore oil rigs, and chemical processing plants. The protective barrier ensures full load-bearing strength even after prolonged exposure to salt water spray.

3. High Fleet Return on Investment For equipment rental yards and large contractors, high durability means long operational lifespans with minimal maintenance costs. Galvanized ringlock equipment requires no repainting, delivering high resale value and strong rental returns over many years.

Enhanced Safety and Fewer Errors

Ringlock Scaffolding reduces job site hazards and assembly errors through pre-engineered connection geometry and self-locking structural connections.

1. Foolproof Geometric Alignment Rosette connectors are welded at exact 500 mm vertical intervals, forcing ledgers to connect at accurate right angles. This pre-engineered design prevents human assembly errors and ensures the framework stays square, plumb, and structurally sound.

2. Positive Self-Locking Gravity Wedges Once driven into the rosette slot, gravity wedge keys hold securely in place. Site vibration, wind loads, and worker movement seat the wedge deeper into the slot, preventing accidental disconnects during active operations.

3. Integrated Safety System Accessories The system works directly with non-slip steel planks, locking toe boards, internal access stairs, and double guardrails. All safety accessories lock firmly into rosette nodes, creating fully enclosed, secure elevated working platforms.

Compliance with International Safety Standards

Ringlock Scaffolding meets rigorous global engineering standards, guaranteeing structural reliability, site safety compliance, and peace of mind for global construction contractors.

1. Full Global Standard Certification High-quality ringlock hardware is engineered and tested to satisfy strict safety codes, including EN 12810 / EN 12811 standards in Europe, OSHA / ANSI guidelines in the United States, and AS/NZS codes in Australia.

2. Rigorous Manufacturing Quality Control Manufacturing facilities utilize automated robotic welding, mill test material analysis, and continuous load testing. Systematic testing ensures that every rosette weld and wedge pin meets rated load capacities reliably.

3. Comprehensive Structural Documentation Manufacturers provide engineering data, certified load charts, and CAD libraries for standard ringlock configurations. Access to certified structural data simplifies safety approvals with local building authorities and site safety inspectors.

For contractors and engineering teams planning complex civil, commercial, or industrial builds, implementing modern modular scaffolding is a proven strategy for improving safety, reducing labor costs, and accelerating job site timelines. Reviewing certified ringlock scaffolding structural systems gives project leaders the technical reliability required for modern high-performance construction management.
