Ringlock Scaffolding System Construction Process And Key Points

Modern commercial construction demands efficiency, worker safety, and versatile structural support. Ringlock Scaffolding has emerged as a premier modular framework, offering exceptional stability across diverse site conditions, highload capacities, and fast assembly speeds.

As global construction projects become more complex, understanding the systematic assembly workflow and technical compliance standards becomes essential. This comprehensive guide outlines the step-by-step construction methodology, key safety parameters, and practical tips to optimize efficiency on site.

Table of Contents Summary

What Is Ringlock Scaffolding System

The Ringlock Scaffolding system is a modular, steel temporary support structure utilizing a round rosette connector with eight attachment points to secure ledgers and diagonal braces quickly without nuts or bolts.

The Ringlock Scaffolding design centers around a central rosette disc welded at regular intervals along vertical standards. This unique connector allows up to eight independent structural members to connect at a single node point. Four narrow slots accommodate horizontal ledgers at right angles, while four wide slots allow diagonal braces to attach at custom angles.

By utilizing a hammer-driven wedge connection mechanism, the system creates a rigid, self-locking joint. This rigid node connection effectively transfers horizontal and vertical loads throughout the scaffold frame, ensuring high load capacity and minimal deflection during heavy-duty operations.

For specialized lightweight projects requiring corrosion resistance, contractors frequently utilize Heavy-Duty Aluminum Ringlock Scaffolding Systems to streamline handling while maintaining high load performance.

Main Components of Ringlock Scaffolding

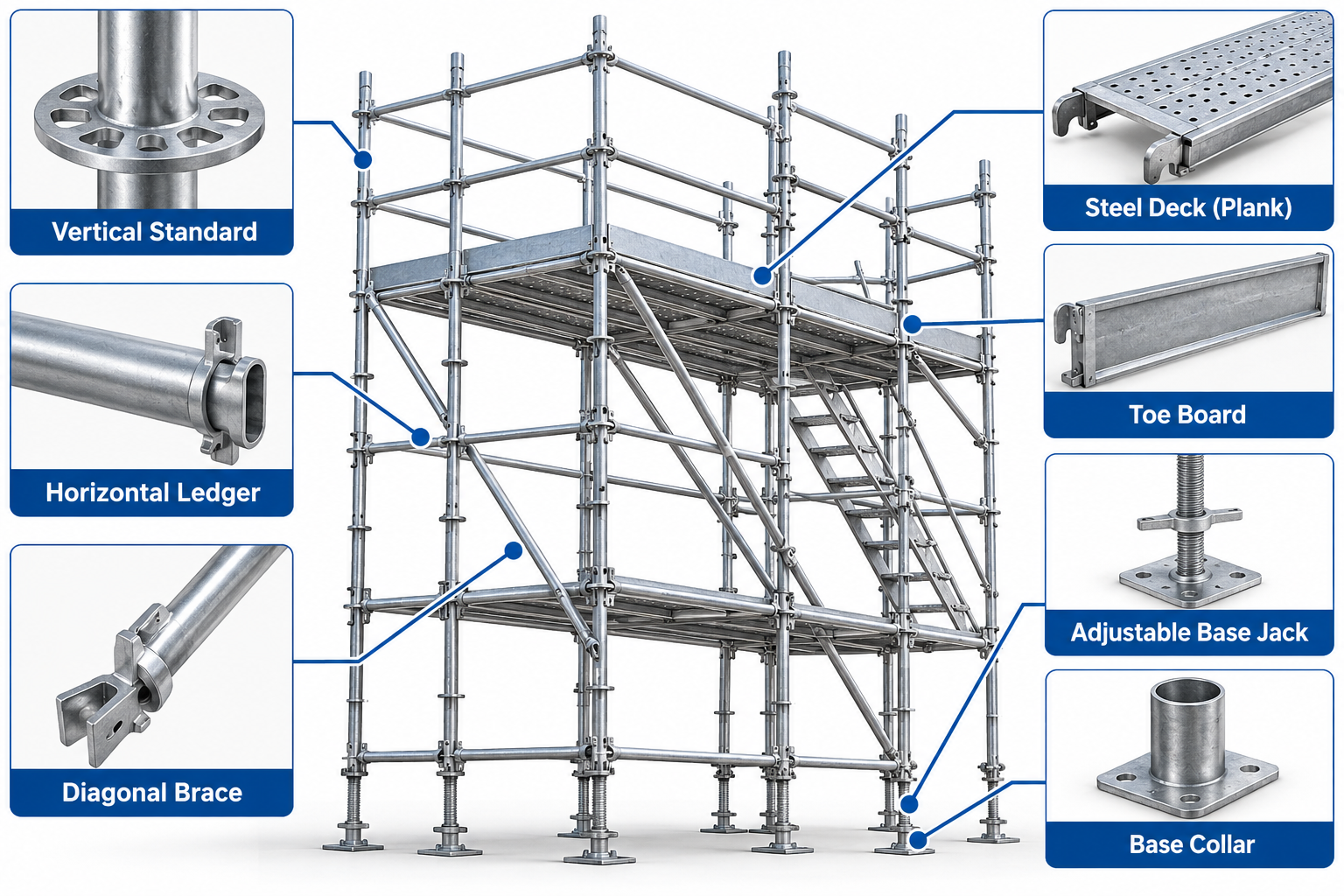

The core components of a Ringlock Scaffolding assembly include vertical standards, horizontal ledgers, diagonal bay braces, adjustable base jacks, base collars, steel decks, and toe boards.

Vertical standards form the main load-bearing legs of the structure. Manufactured from high-strength structural steel pipe, these standards feature rosettes spaced every 500 millimeters along their length, enabling customizable working deck levels.

Horizontal ledgers connect the standards horizontally, forming the framework perimeter and supporting working decks. Diagonal braces lock into the wide rosette slots to provide lateral shear strength, stabilizing the scaffold against wind load and structural movement.

Adjustable base jacks paired with base collars allow precise height leveling on uneven ground. Steel planks drop securely onto horizontal ledgers, featuring perforated anti-slip surfaces, safety hooks, and integrated wind locks for maximum deck safety.

For complete technical specifications across various component sizes, consult our Versatile Modular Ringlock Scaffolding Solutions catalog to select the ideal configuration for your project site.

Step-by-Step Construction Process

The Ringlock Scaffolding construction process involves base preparation, base collar placement, vertical standard erection, horizontal ledger locking, diagonal bracing installation, plank placement, and continuous tie-in anchoring.

1. Base Ground Preparation and Base Jack Layout

Prior to component assembly, inspect ground conditions to ensure adequate load bearing capacity. Place timber sills under steel base jacks to distribute concentrated loads evenly across soft soil or paved areas.

Adjust base jack nuts to approximate horizontal level. Insert base collars onto each base jack stem, establishing the foundation perimeter for the first bay setup.

2. Vertical Standard and Horizontal Ledger Assembly

Insert vertical standards into the base collars. Connect horizontal ledgers into the lower rosette slots of adjacent standards to form the initial rectangular ground frame.

Drive ledger wedge pins gently with a hammer to square the base structure. Check levels with a spirit level before fully tightening the wedge locks to ensure plumb alignment from the start.

3. Diagonal Bracing and Decking Installation

Attach diagonal braces to the outer rosette slots diagonally across vertical bays to establish structural rigidity. Secure wedges tightly using a 500-gram hammer to create rigid node joints.

Install steel planks onto top horizontal ledgers to form full working platforms. Lock plank hooks securely and engage safety pins to prevent accidental dislodgement from uplift winds.

To learn more about our manufacturing capabilities and quality control processes, visit EASY to explore our company standards.

4. Vertical Extension and Anchor Tie-In

Continue inserting spigots of upper vertical standards into lower standards as elevation increases. Repeat ledger, brace, and platform installation for subsequent working lifts.

Anchor the scaffold frame to the permanent building structure at designated vertical and horizontal intervals using rigid anchor tube ties to prevent tipping under wind loads.

Key Construction Standards and Load Considerations

Construction standards require precise adherence to maximum permissible loads, strict verticality tolerances within 1 to 1000, and mandatory anchor tie patterns relative to total height.

Load considerations must account for dead loads, live working loads, wind resistance, and equipment impact forces. Engineers must perform load calculations before erecting high-rise scaffolds.

Ensure base ground bearing capacity exceeds the combined load imposed by vertical standards. When working on weak subgrade, double timber sills or reinforced concrete pads are mandatory.

Key Quality and Safety Control Points

Key safety control points focus on pre-assembly component inspection, precise wedge-pin hammering, continuous vertical plumb monitoring, guardrail placement, and controlled dismantling procedures.

1. Pre-Assembly Inspection and Wedge Lock Security

Inspect all components for surface cracks, bent pipes, damaged rosette welds, or deformed wedge pins prior to erection. Reject damaged items immediately to prevent structural failure.

Ensure every wedge lock is seated fully by hitting the pin with a standard scaffolding hammer until rebound occurs. Loose wedge connections significantly reduce structural rigidity.

2. Plumb Line Checking and Tie-In Verification

Regularly verify vertical alignment using laser levels or plumb bobs as each lift is erected. Non-vertical standards create eccentric loading, drastically reducing overall weight capacity.

Verify structural ties are anchored into sound concrete or steel beams rather than temporary fixtures. Never remove wall ties prematurely during dismantling phases.

3. Guardrail and Debris Protection Installation

Install double guardrails consisting of top rails and mid rails at all working platform heights exceeding 2 meters. Mount toe boards along deck edges to stop falling tools.

Attach containment safety nets or debris screening along the outer frame faces to shield workers and pedestrians below from falling construction debris during overhead operations.

Ringlock Scaffolding vs Traditional Systems

Ringlock Scaffolding outperforms traditional cuplock and tube-and-clamp systems in assembly speed, load capacity, multi-angle connection flexibility, and lower long-term labor costs.

While traditional tube and clamp frameworks offer complete geometric flexibility, they require significant skilled labor hours and continuous torque testing on thousands of loose clamps.

Modular Ringlock Scaffolding reduces erection time by up to 50 percent compared to traditional systems. The fixed rosette spacing ensures consistent geometry, eliminating human measurement errors on site.

Applications of Ringlock Scaffolding

Ringlock Scaffolding is widely applied in commercial building facades, bridge shoring projects, industrial refinery maintenance, shipbuilding, and temporary event grandstands.

1. High-Rise Commercial and Residential Building Facades

The modular nature of this framework allows rapid vertical extension along complex building exteriors. Curved facades are easily navigated using variable angle rosette connections.

Working platforms provide secure access for masonry work, curtain wall installation, exterior painting, and insulation application at elevated heights.

2. Heavy-Duty Shoring and Infrastructure Support

With high load capacity per vertical leg, these systems serve as falsework shoring frames for heavy concrete slab casting in bridge and tunnel construction.

System components integrate seamlessly with heavy duty aluminum beam support systems, supporting immense hydraulic and concrete loads safely during civil engineering works.

3. Industrial Maintenance and Petrochemical Refineries

In chemical plants, power stations, and shipyards, complex piping networks and circular tanks present difficult spatial challenges for standard rectangular scaffolds.

Rosette connections allow components to cantilever around circular structures, providing safe 360-degree maintenance access to storage tanks, boilers, and industrial stacks.

4. Temporary Event Staging and Grandstands

The high structural stability and standardized bay dimensions make the framework an ideal choice for constructing public event stages, lighting towers, and temporary grandstands.

Quick assembly and quick tear-down workflows ensure minimal disturbance to public venues while meeting strict international safety compliance codes for public gatherings.
