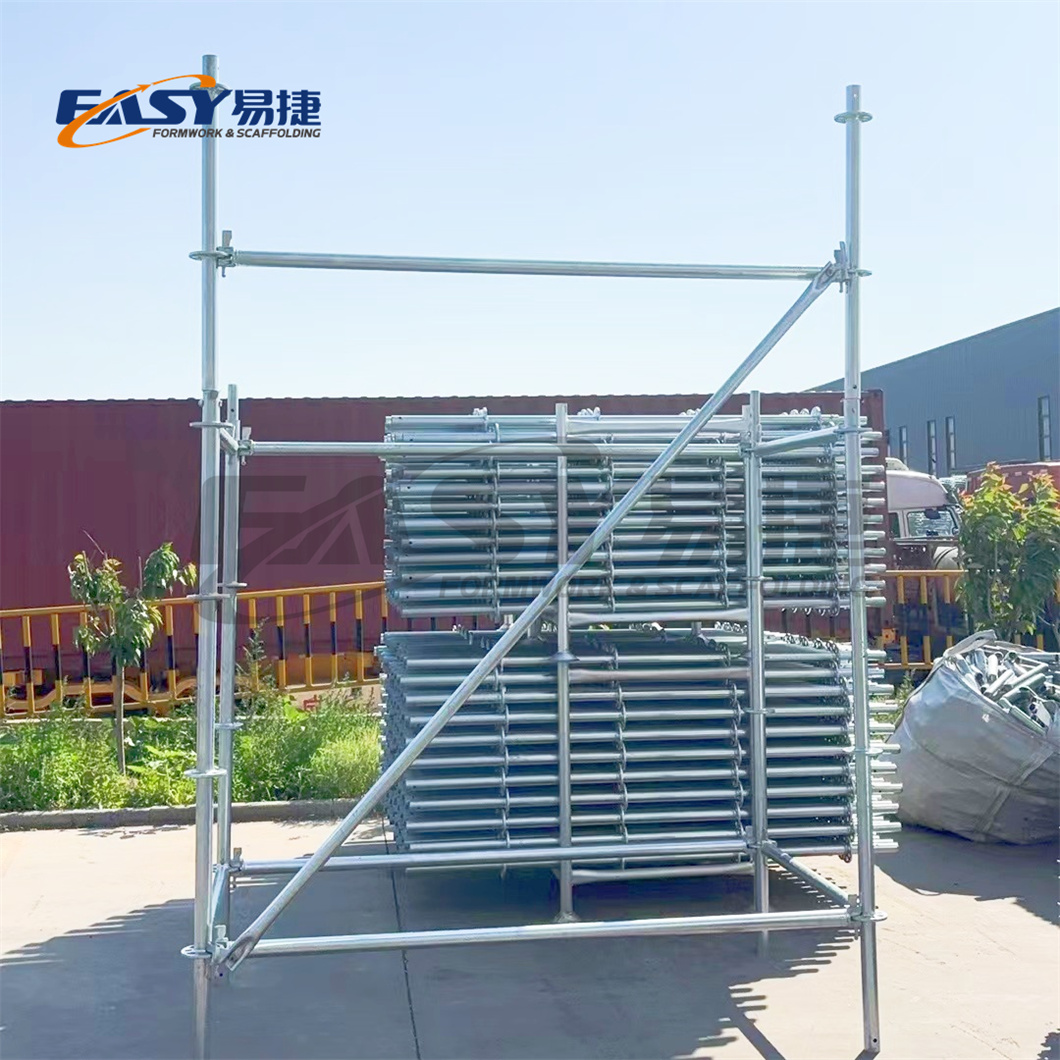

A ringlock scaffold bay is the space between adjacent standards (vertical posts) in a scaffold layout. Its length is generally set by the ledger arrangement; its width is set by the distance between the inner and outer rows of standards. Those two dimensions affect how the platform fits the work, how people and materials move, and which components you need to order.
There is no single bay size that suits every project. Start with the work area and intended loads, then check the proposed layout against the system manufacturer's technical data and the applicable site rules. A qualified person should design the scaffold and confirm that it will be built and loaded according to that design. In the United States, this is an explicit requirement under OSHA 29 CFR 1926.451.
Bay length runs along the scaffold. It affects the distance between adjacent standards and the length of the ledgers, decks and braces used in that direction. Bay width runs from the building side to the outside edge of the scaffold. It affects usable platform width, deck quantity, access and the space available for the task.
Suppliers may label components by nominal length, actual length or centre-to-centre connection dimension. Confirm the measurement convention before combining parts or preparing a bill of materials. A ledger's catalogue length alone does not establish the scaffold's permissible load or a safe working bay.
Tianjin Easy Scaffolding's ringlock product information lists standard ledger lengths from 0.61 m to 1.829 m. That range shows why a layout can be adjusted to different footprints; the dimensions available for a particular order and their corresponding system data must be confirmed before specification.
The work itself determines the questions to ask. Use this table to brief the designer and supplier; it is not a set of approved bay dimensions.
Work area | Layout questions to resolve |
|---|---|
Straight façade | Where are the work faces, openings, façade projections and tie locations? Will each platform level give workers access to the task? |
Masonry or material-intensive work | How much material will be placed on a platform at one time? Is a separate loading bay or a project-specific design needed? |
Narrow passage | What clear route must remain for workers and other site users? Can the proposed deck arrangement provide the required working width? |
Plant room or irregular structure | Where must the scaffold turn, step around equipment or change elevation? Which shorter bays or engineered brackets are needed? |
Stair or access bay | How will workers reach each level? Does the access unit fit the bay and the planned traffic flow? |
For U.S. projects, OSHA generally requires scaffold platforms and walkways to be at least 18 in (46 cm) wide, subject to specified exceptions. It also addresses platform gaps, access, foundations, bracing and loading. Check the full rule and the requirements that apply to your scaffold type and site rather than treating this one width as a complete design criterion. OSHA 29 CFR 1926.451
Mark the overall façade or structure length, changes in direction, openings, obstructions and ground levels. Note the height of each work zone. A simple plan and elevation help reveal where repeated bays are practical and where shorter or special bays may be required.
List the trades, number of workers, tools and materials expected at each level. Separate normal access from areas where materials will be stored or delivered. The intended load must be part of the scaffold design; do not infer it from a ledger length or a component's isolated capacity. The UK Health and Safety Executive's scaffold guidance advises informing the scaffold provider when platforms will be loaded with materials, as a specific design may be needed.
Work back from the task, the movement of people and materials, and the decking units supplied for the ringlock system. Check the resulting clear width after accounting for standards, edge protection and any brackets. A wider platform may improve access, but it can also change the load path and component requirements. Follow local rules and the approved system design.
Choose ledger lengths that fit the work face with as few awkward gaps as practical. Repeated standard bays can simplify component counts, while shorter bays can help around corners and obstructions. Check that the matching decks, transoms, diagonal braces and guardrail components are available for every proposed bay. Do not mix nominal sizes from different systems on the assumption that they will fit.
The proposed dimensions must be reviewed with the overall height, ties, bracing, foundations, access and any cantilevered or loading areas. Bay dimensions are only one input. For example, OSHA requires supported scaffold legs to bear on base plates and adequate firm foundations, and requires supported scaffolds to be plumb and braced to prevent swaying or displacement. OSHA 29 CFR 1926.451(c)
Request the manufacturer's technical data for the exact standards, ledgers, braces, decks and connections to be supplied. Ask how dimensions are measured, which components can be used together and what test or compliance documents are available for the specific products and destination market. Do not assume that a report for one component certifies the complete scaffold configuration.
Once the layout has been checked, count each component by length and type: standards, ledgers, diagonal braces, decks, base jacks, base collars, guardrails, toe boards, access units and any project-specific fittings. Record the finish, packing needs and destination. This gives the supplier enough detail to quote a consistent system rather than a collection of approximate parts.
Choosing the longest available ledger by default. A longer bay does not automatically give the correct load rating, platform support or access.
Sizing only along the façade. Platform width and the clearance needed to perform the work matter just as much.
Using one bay type everywhere. Corners, openings, stairs and loading areas may need a different arrangement.
Assuming components are interchangeable. Connection details and dimensions must be checked before parts from different suppliers are combined. OSHA restricts intermixing components unless they fit without force and structural integrity is maintained. OSHA 29 CFR 1926.451(b)(10)
Treating a product range as a design approval. Published component dimensions are a starting point for selection, not permission to build a particular scaffold without the required design review.
To help a supplier prepare a useful proposal, send a site drawing or marked-up photos and provide:
The length and height of each work face, with corners and obstructions marked.
The intended tasks at each platform level and the materials to be placed there.
The required access route, stair locations and any loading areas.
Site ground conditions and available locations for ties or other restraints.
The destination country and project documentation requirements.
Preferred finish, packing method, delivery location and required quantities.
Tianjin Easy Scaffolding supplies ringlock standards, ledgers, braces and related components in multiple sizes. If you have a project drawing or an existing component list, contact the team to request component availability, matching accessories and a quotation. Final scaffold design and installation must follow the approved project-specific plan.
A bay is the section between adjacent standards. Its length follows the ledger direction, while its width is the distance between the inner and outer rows of standards. The full arrangement also includes decks, braces, access and edge protection.
Ringlock systems offer several component lengths, but a project does not have one universal safe bay size. The work, intended load, platform arrangement, system data and local requirements determine the suitable layout.
Do not use that rule as a design shortcut. Capacity depends on the tested system configuration, component condition, bracing, ties, foundation and load distribution. Consult the manufacturer's data and the qualified designer for the proposed arrangement.
Only after compatibility and structural integrity have been verified for the proposed use. Matching nominal lengths or tube diameters alone is not enough. U.S. OSHA rules include specific conditions for intermixing scaffold components. OSHA 29 CFR 1926.451(b)(10)
